Reference cases and projects

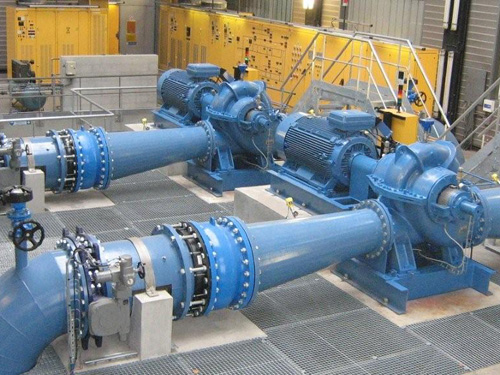

Supply and install 2 pump blocks - each with 3350 m³/h and 40 m - engine power 560 kW / 690 V

HYDRAULIC PIPLINES:

• Creation of 4 branch pipes of ND 800, PN 16 on the header of ND 1000
• 2 suction lines of ND 800, PN 16
• 2 discharge lines of ND 800, PN 16
• 1 sampling line network made of 316 stainless steel

VALVES AND FITTINGS:

• 8 dismantling joints Ø 800 PN 16
• 2 check valves NOREVA ND 800 PN 16
• 4 SAPAG ND 800 PN 16 butterfly valves and an AUMA electric actuator
• 4 BAYARD ND 100 air release valves
• 4 gate valves ND 100

The design basis for a drinking water supply network requires in-depth hydraulic analysis. At FELJAS & MASSON, the Design and Engineering Office has this capability and can engineer the optimum equipment for each project's needs and operating constraints.

• CAPACITY 50,000 to 150,000 m³
