Reference cases and projects

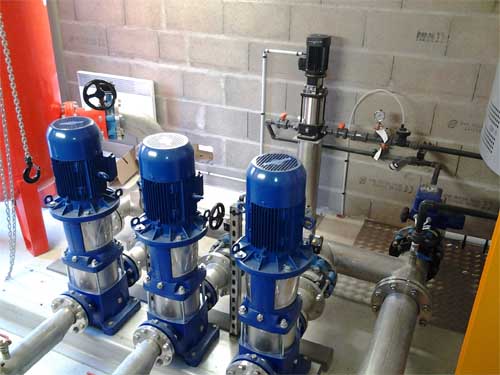

• 3 electric pumps (including 1 backup)

• Brand: XYLEM - LOWARA
• Type: 46SV2
• Multicellular with vertical axis
• Flowrate: 45 m³/h - TDH: 33 m
• Motor power: 5.5 kW
• On speed drive

• Stainless steel 316L DN100 to DN150 hydraulic pipes, including the following fittings:

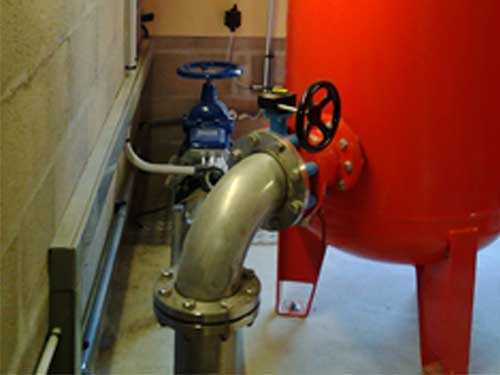

• Surge control tanks:

• 1 upstream of capacity 1000 litres, PS 16 bars, PE 24 bars, DN150
• 1 downstream of capacity 1000 litres, PS 16 bars, PE 24 bars, DN150

• Chlorination with gaseous chlorine with mechanical inversion and analyser

• Electricity :

• Miscellaneous: handling rail, dehumidifier, installation of a metering inspection hatch on the network

Specificities :

Creation of a night measurement program to check the roughness of the pipes

• Total flowrate: 90 m³/h
• TDH: 33 m

Total value of work: €117 328 excl. VAT
